W&Wsens Devices Inc.

Thin Silicon Photosensors With High NIR Sensitivity

OUR TECHNOLOGY

W&W breakthrough innovation : Lightwave trapping using microholes to enable high speed and high sensitivity in thin Silicon photosensor arrays in the Red and NIR wavelength

Lightwave Trapping
  • Microhole compatible with CMOS Trench Isolation Etch

  • Enhance absorption in Thin Silicon 0.1 - 3 micron, 700 nm - 1000 nm wavelength

  • EQE 85% @850 nm, 1 micron Si - WR

  • Microholes on thin Ge on Si extend wavelength to 1700 nm

  • Low Jitter (<15ps), High data bandwidth >56Gb/s

Performance and Cost Reduction
  • Standard CMOS manufacturing process, unlike Black Silicon using pulsed laser process

  • Monolithic Integration of photosensor arrays with CMOS ASICs or...

  • Stacked Technology of photosensor array with CMOS ASICs for BICIS

  • Low manufacturing cost due to Thin Silicon, 3 microns or less

  • High performance low parasitics

  • Visible / NIR Imaging - single microhole for small pixels

  • 3D Imaging / Time of Flight Imaging

  • AR / VR, Facial Recognition, LiDAR for ADAS, Security, Medical

  • 1 Tb/s aggregated data bandwidth - Optical Interconnect for Data Center

  • 56, 6G high capacity optical link

​

​

​

​

Applications

Core Application Sectors & Competitive Advantages

Screen Shot 2020-12-13 at 1.42.51 PM.png

W&Wsens Devices Technology Impact

Screen Shot 2020-06-25 at 2.51.05 PM.png

W&Wsens Devices Microhole to Enhance Red and NIR Sensitivity for Stacked BICIS - Imaging and 3D Imaging

Screen Shot 2020-06-25 at 2.49.51 PM.png

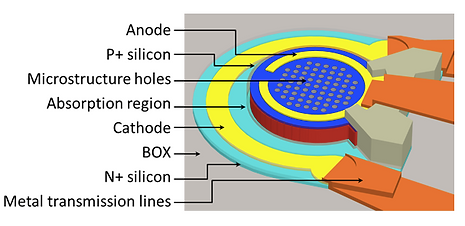

Surface Illuminated Microstructure Hole Photodiodes
Si PIN Photodiode
Ge on Si PIN Photodiode
Ge Pd.png
Scanning Electron Microscope Images
Optical Field Distribution in Microstructure Hole PD using FDTD Simulation
optical field distribution .png
Microstructure Hole PD / APD Results
Si PIN 850nm Impulse
Ge on Si PIN 1300nm Impulse
nature photonics Impulse Response.png
prj  impulse.png

EQE Si PIN PD

Si Absorption layer thickness < 2um

Screen Shot 2018-09-11 at 2.15.09 PM.png

Responsivity Si APD

Multiplication M=1026 @ 850nm, 8.5uW

Screen Shot 2018-09-11 at 1.52.29 PM.png
Product

About W&W

Over a cup of cappuccino at a cafe in Palo Alto, W&Wsens Devices was conceived and in a few months grew to over 100 years of aggregated knowledge and experience in photonic devices, optical systems , innovation, IP,manufacturing, and start-ups. All team members come from Fortune 500 companies and / or start ups.

SP Bob Wang - CEO & Co-Founder

BS RPI, MS MIT

Founder & Chairman of:

R2 (sold to Hologic),

U-Systems (sold to GE),

EndoSee (sold to Cooper)

QView, and UroViu.

​

Shih-Yuan Wang - CTO & Co-Founder

BS, PhD UC Berkeley

HP Labs 200+ Patents

High speed photodetectors

Co-Inventor of Multimode VCSELS

USPTO : 5,359,447 A

for Datacenter interconnect



​

Saif Islam - Professor UCD

UCD Collaboration

PhD UCLA

JDSU, HP Labs

High speed photonic devices

​

​

Aly F. Elrefaie - Chief Scientist

BS Ain Shams University

MS & PhD NYU Engineering

Bellcore, HP Labs, Boeing,

Optical communication systems

​

Toshishige Yamada - Principal Scentist

Physics for advanced materials and devices

BS, MS University of Tokyo

Ph.D Arizona State University

NEC Labs, Japan

Semiconductor transport theory

​

Ekaterina (Katya) Ponizovskaya Devine

Principal Scientist, Theory

MS & PhD Moscow Institue of Physics and Technology

HP Labs

Theory, numerical modeling

​

Lihan Wang -Vice President Strategy

& Business Development

BA University of Michigan, Ann Arbor

MSc University of Leeds

Agora Labs, UBS

​

About

Market Outlook

Screen Shot 2020-12-18 at 3.44.26 PM.png
Featured
Contact
Screen Shot 2020-12-18 at 3.38.19 PM.png

Intellectual Property

W&Wsens Devices Inc IP Portfolio
56 Issued Patents and Published Patent Applications + many pending





Enhancement of NIR in thin Silicon and thin Germanium on Silicon for CIS, LiDAR and Hyperscale DCI

​

Wafer level stacking technology for co-packaging optics Rx

​









































​

​

​

​

​

​

​

Screenshot 2024-09-08 at 8.54.27 PM.png
Screen Shot 2020-12-18 at 3.50.03 PM.png
Demo

Publications & Media

Publications

Photon-Trapping Microstructures Enable High-Speed Efficiency Silicon Photodiodes ; Nature Photonics 2017
​
High Speed Surface Illuminated Si Photodiode Using Microstructured Holes for Absorption Enhancements at 900-1000nm Wavelength; ACS Photonics 2017
​
A New Paradigm in High-Speed and High-Efficiency Silicon Photodiodes for Communication Part I: Enhancing Photon-Material Interactions via Low-Dimensional Structures ; IEEE TED 2017
​
A New Paradigm in High-Speed and High-Efficiency Silicon Photodiodes for Communication Part II: Device and VLSI Integration Challenges for Low-Dimensional Structures ; IEEE TED 2017
​
High-Speed High-Efficiency Broadband Silicon Photodiodes for Short-Reach Optical Interconnects in Data Centers; OFC 2018
​
Surface Passivation of Silicon Photonic Devices with High Surface-to-Volume-Ratio Nanostructures ; Journal of the Optical Society of America B 2018
​
Surface-illuminated photon-trapping high-speed Ge-on-Si photodiodes with improved efficiency up to 1700nm ; Photonics Research OSA 2018
​
Enhanced Photon Detection Efficiency of Silicon Single Photon Avalanche Photodetectors Enabled by Photon Trapping Structure ; DOI:10.1109/PHOSST.2018.8456744 IEEE 2018
​
High-Speed High-Efficiency Photon-Trapping Broadband Silicon PIN Photodiodes for Short-Reach Optical Interconnects in Data Centers; IEEE Journal of Lightwave Technology 2019
​
Dramatically Enhanced Efficiency in Ultra-fast Silicon MSM Photodiodes with Photon-trapping Structures; IEEE Photonics Technology Letters 2019
​
​
​
Media
​
Fast Silicon Photodiodes ; Nature Photonics
​
Silicon Nanostructures Bend Light to Make Faster Photodiodes ; IEEE Spectrum
​
Tiny Black Holes Enable a New Type of Photodetector for High Speed Data ; Phys.org
​
Nanoholes in Silicon Bolster Photodetector Speed, Efficiency ; Photonics.com
​
" Black Holes" in Silicon Enable High-Speed Photodetector ; Photonicsonline.com
​
​
